PixelNet

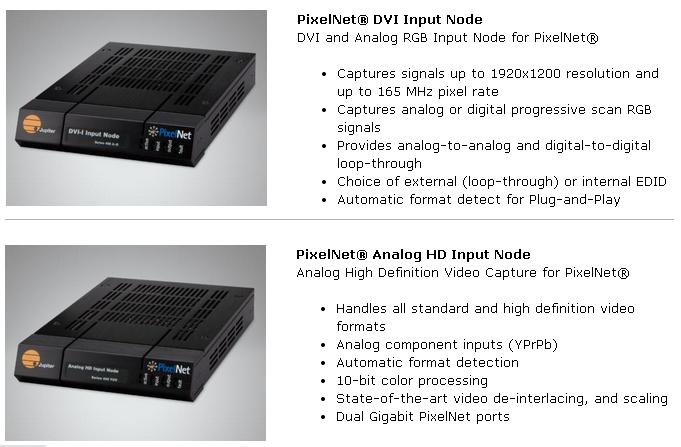

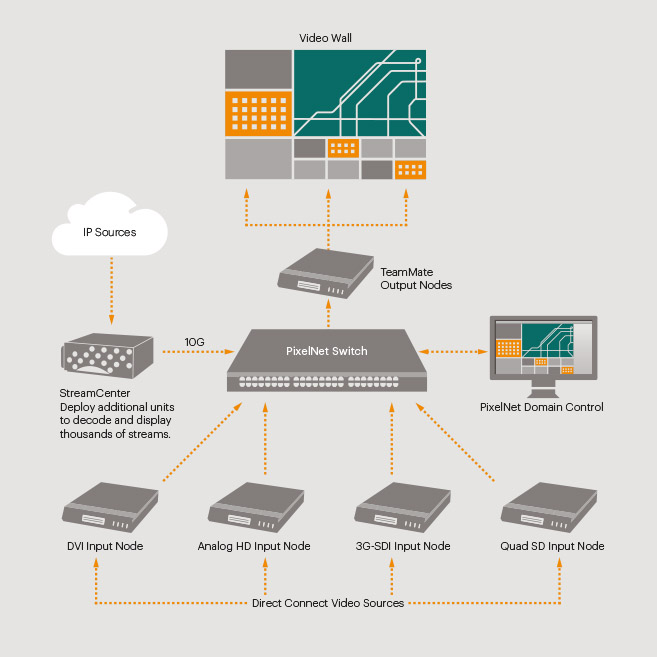

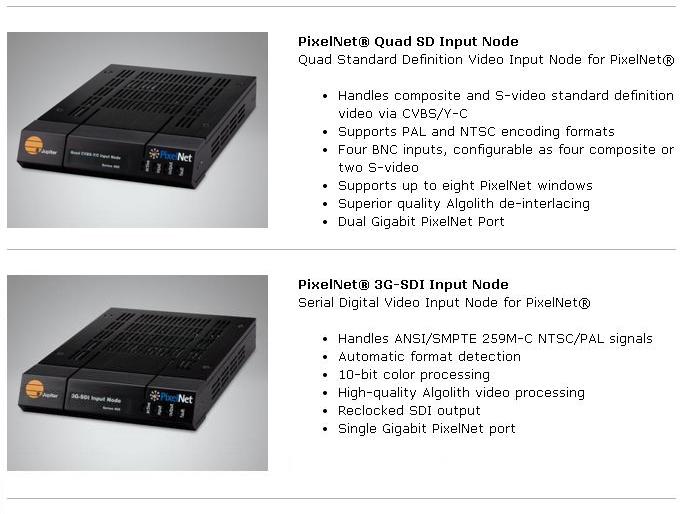

PixelNet adopts Gigabit Ethernet technology to create a network of input and output nodes to drive high resolution, real time video walls. A broad variety of PixelNet input nodes can be matched to almost any video source, while PixelNet output nodes connect to displays. Connected via CAT-6 cables, input and output nodes can be located as far as 100 meters from the switch. Using packet-switching technology, any information source can be shown on any display, such as a window on a single display, or as a window spanning multiple displays in a display wall.

PixelNet makes creating complex topologies of inputs, outputs and switches simple, cost effective, and future proof. Massively scalable, the same component parts can scale from a single input distributed to a single output to hundreds of inputs and outputs. PixelNet input nodes are small, silent and use very little power. PixelNet Domain Control software provides an intuitive, object-oriented, drag-and-drop interface to control and manage multiple inputs, outputs and display walls.
