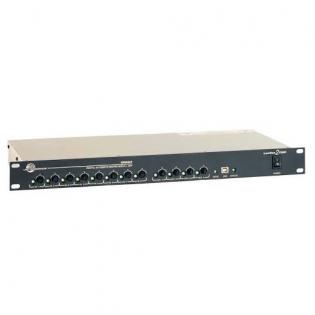

Specifications
Audio inputs
Gain: -10 dB to +60 dB; programmable 1 dB steps
Input impedance: 2.5 k Ohm
Phantom voltage: 15V, programmable
Connector: 5-pin Phoenix
Audio outputs: Floating balanced, either side can be grounded
Nominal level: 0 dBu all outputs, -40 dBu selectable on
outputs 9 through 12
Output impedance:
•450 Ohm differential programmable outputs at line level
•5 Ohm differential programmable outputs at microphone level
Input Dynamic Range: 96 dB at -50 dBu input level; 102 dB at all
other levels (unweighted 20 - 20 kHz)
Output Dynamic Range: 105 dB (unweighted 20 - 20 kHz)
Audio Performance:
IMD + noise: 0.1% max.
0.02% nominal input level
THD + noise: 0.1% (worst case)
0.02% nominal input level
EIN: -126 dBu
Connectors:
Audio I/O: 5-pin Phoenix
Expansion: RJ45
Logic I/O: DB25
Serial: Standard USB and mini TRS
Digital Audio Network Interface ( DANI):
Physical level: LVDS (Low Voltage DIfferential Signal)
high speed
Connector: Four RJ-45
Cable quality: Shielded CAT-5
Transmission speed: 50 Mbits/s
Programmable control inputs
Number of inputs: 11
Analog voltage range: 0-5V
Logic input: TTL, LVTTL, CMOS, LVCMOS
Programmable control outputs
Number of logic outputs: 8
Logic control: Active low
Max sink current: 100 mA
Max supply voltage: 40 V
Supply voltage for control I/O: 5 V
Max current: 750 mA
Power requirements: 100-240 VAC, 47-63 Hz
Power consumption: 15 Watts
|
