Control Engine |
|
|
3-Series™; real-time, preemptive multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; supports up to 10 simultaneously running programs |
|
Memory |
|
|
SDRAM |
1 GB |
|
|
Flash |
4 GB |
|
|
Memory Card |
supports SD™ and SDHC™ cards up to 32 GB |
|
|
External Storage |
support USB mass storage devices up to 1 TB |
|
Communications |
|
|
Ethernet |
10/100/1000 Mbps; auto-switching; auto-negotiating; auto-discovery; full/half duplex; industry-standard TCP/IP stack; UDP/IP; CIP; DHCP; SSL; IEEE 802.1X; SNMP; BACnet®/IP[2]; IPv4 or IPv6; Active Directory authentication; IIS v.6.0 Web Server; SMTP e-mail client; installer setup via Crestron Toolbox™ or MSIE[4] |
|
|
Control Subnet |
10/100/1000 Mbps Ethernet, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP server, DNS Server, port forwarding, Isolation Mode |
|
|
Cresnet® |
Cresnet master mode |
|
|
USB |
Supports USB HID and USB mass storage class devices via rear panel USB 2.0 host port, supports computer console via front panel USB 2.0 device port |
|
|
RS-232/422/485 |
For 2-way device control and monitoring, all ports support RS-232 up to 115.2k baud with software handshaking, two ports also support hardware handshaking, RS-422, and RS-485 |
|
|
IR/Serial |
Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud |
|

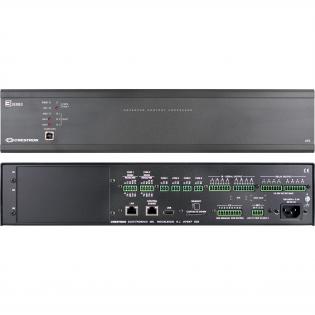

Connectors & Card Slots |
|
|
S1 – S3 |
(3) 3-Series™ control card expansion slots (optional)[3] |
|
|
COM 1 – 2 |
(2) 5-pin 3.5mm detachable terminal blocks;
Bidirectional RS-232/422/485 ports[5];
Up to 115.2k baud; hardware and software handshaking support |
|
|
COM 3 – 6 |
(4) 3-pin 3.5mm detachable terminal blocks;
Bidirectional RS-232 ports[5];
Up to 115.2k baud; software handshaking support |
|
|
IR - SERIAL OUTPUT 1 – 8 |
(2) 8-pin 3.5mm detachable terminal block comprising (8) IR/Serial output ports;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud |
|
|
RELAY OUTPUT 1 – 8 |
(2) 8-pin 3.5mm detachable terminal blocks comprising (8) normally open, isolated relays;
Rated 1 Amp, 30 Volts AC/DC;
MOV arc suppression across contacts |
|
|
LAN |
(1) 8-wire RJ45 jack;
10Base-T/100Base-TX/1000Base-T Ethernet port[5];
Connects to the customer’s LAN |
|
|
CONTROL SUBNET |
(1) 8-wire RJ45 jack;
10Base-T/100Base-TX/1000Base-T Ethernet port[5];
Provides a dedicated local network for Crestron devices |
|
|
USB |
(1) USB Type A female;
USB 2.0 port for storage devices |
|
|
MEMORY |
(1) SD memory card slot;
Accepts one SD or SDHC card up to 32 GB for memory expansion |
|
|
I/O 1 – 8 |
(1) 9-pin 3.5mm detachable terminal block comprising (8) "Versiport" digital input/output or analog input ports (referenced to GND) [5];
Digital Input: Rated for 0-24 Volts DC, input impedance 20k Ohms, logic threshold >3.125V low/0 and <1.875V high/1;
Digital Output: 250mA sink from maximum 24 Volts DC, catch diodes for use with "real world" loads;
Analog Input: Rated for 0-10 Volts DC, protected to 24 Volts DC maximum, input impedance 21k ohms with pull-up resistor disabled;
Programmable 5 Volts, 2k ohms pull-up resistor per pin |
|
|
NET |
(1) 4-pin 3.5mm detachable terminal block;
Cresnet master port, outputs power to Cresnet devices[5];
See "Power Requirements" for additional specifications |
|
|
100-240V~2.4A 50/60Hz |
(1) IEC 60320 C14 main power inlet;
Mates with removable power cord, included |
|
|
G |
(1) 6-32 screw, chassis ground lug |
|
|
COMPUTER (front) |
(1) USB Type B female;
USB 2.0 computer console port (6 ft cable included);
For setup only |
|
Controls & Indicators |
|
|
PWR |
(1) Green LED, indicates operating power supplied from AC line |
|
|
NET |
(1) Amber LED, indicates communication with the Cresnet system |
|
|
MSG |
(1) Red LED, indicates control system has generated an error message |
|
|
HW-R |
(1) Recessed pushbutton for hardware reset |
|
|
SW-R |
(1) Recessed pushbutton for software reset |
|
|
CNPS FAULT |
(1) Red LED and (1) pushbutton, LED indicates an excessive Cresnet load detected at the NET port, pushbutton resets the fault indication |
|
|
SLOT 1 – 3 |
(3) Green LEDs, indicate control cards are inserted in the corresponding slots[3] |
|
|
LAN (rear) |
(2) Bi-color green/amber LEDs, left LED indicates Ethernet link status and connection speed, right LED indicates Ethernet activity |
|
|
CONTROL SUBNET (rear) |
(2) Bi-color green/amber LEDs, left LED indicates Ethernet link status and connection speed, right LED indicates Ethernet activity |
|
Power Requirements |
|
|
Main Power |
2.4 Amps @ 100-240 Volts AC, 50/60 Hz |
|
|
Available Cresnet Power |
75 Watts (3.125 Amps @ 24 Volts DC) |
|
Environmental |
|
|
Temperature |
41° to 113°F (5° to 45°C) |
|
|
Humidity |
10% to 90% RH (non-condensing) |
|
|
Heat Dissipation |
45 BTU/Hr with no Cresnet devices, no control cards;
71 BTU/Hr with full Cresnet load, no control cards;
See individual control card spec sheets for additional specifications |
|
Enclosure |
|
|
Chassis |
Metal, black finish, vented top and sides |
|
|
Faceplate |
Extruded metal, black finish, polycarbonate label overlay |
|
|
Mounting |
Freestanding or 2U 19-inch rack-mountable (adhesive feet and rack ears included) |
|
Dimensions |
|
|
Height |
3.47 in (89 mm) without feet |
|
|
Width |
17.28 in (439 mm);
19.00 in (483 mm) with rack ears |
|
|
Depth |
10.06 in (256 mm) |
|
Weight |
|
|
4.0 lb (1.9 kg) |
